IEC explosion proof standard motor Exd II CT4 Gb has advantages such as excellent Flame-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced Flame-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating.
Brief Introduction
YBX5 Explosion Proof Motor Through IEC certification, the use of non-spark design and static control technology, from the source of explosion risk. Designed for flammable gas/steam high risk environment, its enhanced flameproof structure can contain internal arc, to ensure the essential safety of personnel and equipment in oil, coal, chemical and other explosive danger areas.

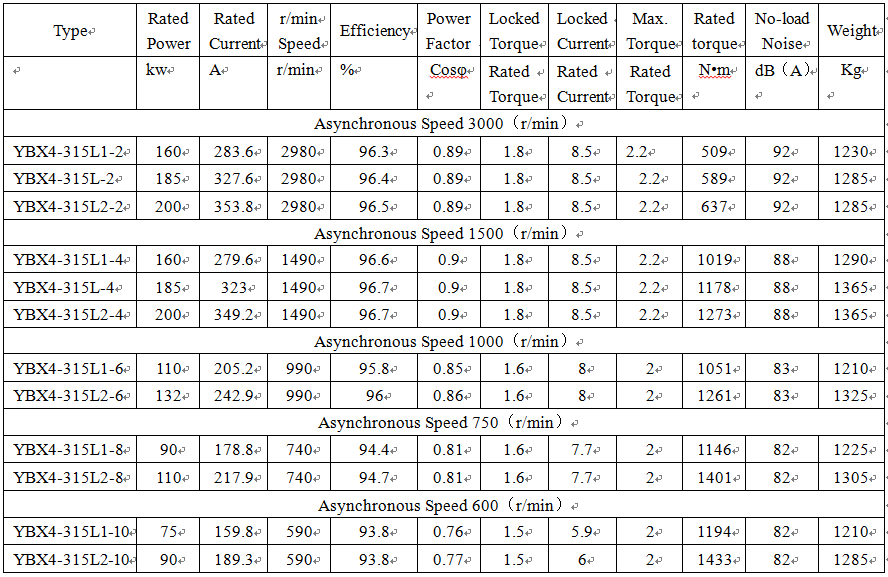

| Frame | H315 |
| No. of Poles | 2P, 4P, 6P, 8P, 10P |
| Power Scope | 75~200kW |
| Voltage | 380V/660V |
| Frequency | 50/60Hz |
| Speed | 600rpm, 750rpm, 1000rpm, 1500rpm, 3000rpm |
| Protection Grade | IP55 |
| Insulation Class | F |
| Mounting Type | IM B3 |
| Connection | Delta/Y |
| Mark of Explosion-proof | Exd I Mb, Exd II BT4Gb, Exd II CT4 Gb |
| Cooling Type | IC411 |
| Efficiency Class | IE3 |
| Duty | S1 |
| Vibration | ≤1.8mm/s |
| Ambient Temperature | -15℃ ～ +40℃ |
| Altitude | ≤1000m |
| Humidity | Average monthly peak relative humidity is 90% |
